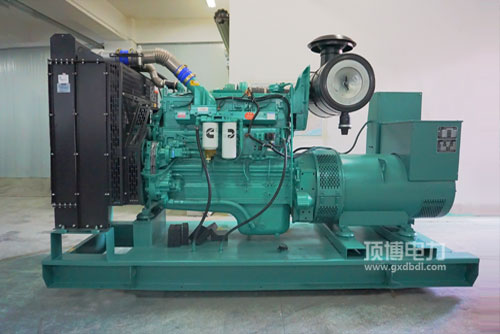

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用热车机燃料国家效益性好: 先进的的燃料抑制系統化，独到的STC、ESTC 等级划分抑制系統化，非常规的设计的活赛上边烧燃室，油田发射燃料，宽裕吸雾，烧燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用发起机瞬态功能高品质: 精致的发起机总布局的设计，密切配合康明斯独一无二的EFC机系统，调控高精度大，反映事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用发起机升瓦数高: 整体布局装修设计宽敞.外貌搭建有效率，工作顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50满足需要中国国非城市道路然后时候及美国Tier2. Tier 3废气排放相关法律法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可获得性好， 发起机正常运作及维持保養友盒，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数区域 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的特质：表面积小， 收缩比较高， 喷淋喷嘴热空气调温，最易重启，挪动车载式24v电源的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型号查询	最常用额定功率(kW)Prime Power	紧急输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
